How to ensure the highest level of safety & efficacy for refractive surgery

Professor Dan Reinstein talks about the safety concerns and benefits of various refractive surgical options

The field of refractive surgery has evolved remarkably over the past two decades, shifting from an innovative but niche specialty to a mainstream, evidence-driven discipline.

However, despite substantial technological advancements and a growing body of clinical evidence, scepticism persists. Concerns about the safety and predictability of refractive surgery, especially when compared to contact lens use, are often rooted in outdated perceptions.1-3

Today, laser eye surgery demonstrates excellent safety profiles that not only rival but, in many cases, surpass long-term contact lens wear.2, 4

This article delves into four critical pillars of modern refractive surgery: epithelial mapping for keratoconus detection, Presbyond laser-based presbyopia correction, advanced techniques for implantable collamer lens (ICL) sizing, and cutting-edge methods for addressing complications.

By detailing these advancements, we aim to foster greater collaboration between optometrists and refractive surgeons for the benefit of patient care.



1 Epithelial Mapping in the Screening of Keratoconus

There are now several optical coherence tomography devices available within clinical practice that have the ability to map the corneal epithelium. Epithelial mapping plays a pivotal role in keratoconus screening by leveraging the corneal epithelium’s adaptive properties to identify or rule out stromal irregularities.

The studies reveal that the corneal epithelium adjusts its thickness to mask underlying stromal abnormalities, making epithelial mapping essential for detecting subtle irregularities that might evade traditional topography.5, 6

Using very-high frequency (VHF) ultrasound, it has been demonstrated that the thickness of the corneal epithelium is not uniform. Instead, on average the corneal epithelium is thicker inferiorly than superiorly, and thicker nasally than temporally.

In keratoconus, epithelial thinning directly over the stromal cone, coupled with thickening in adjacent areas, forms a characteristic ‘doughnut’ pattern as seen in figure 1. This unique epithelial profile is highly indicative of keratoconus, even in cases where anterior corneal topography appears normal. The absence of such patterns, particularly over areas of steepening seen in topography, can confidently exclude keratoconus.

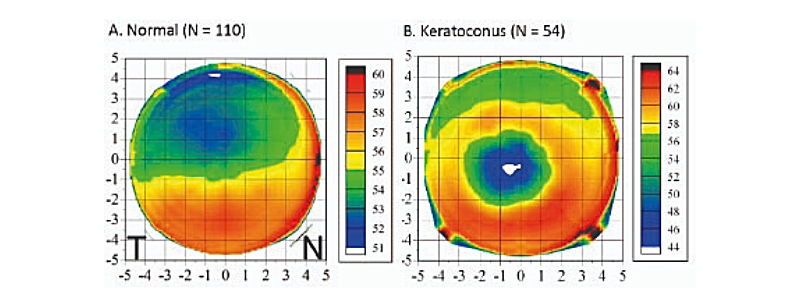

Figure 1: Mean epithelial thickness profile for a population of 110 normal eyes (A) and a population of 54 keratoconic eyes (B)



For instance, in suspect cases where topographic abnormalities raised concerns, the presence of a normal epithelial profile ruled out keratoconus and allowed safe Lasik procedures, as highlighted in the studies reviewed.7-10

The specificity and sensitivity of epithelial mapping surpass conventional methods by addressing limitations in detecting subclinical keratoconus. When integrated with posterior elevation metrics from tools like the Pentacam or MS39, epithelial mapping significantly enhances diagnostic accuracy.

The studies demonstrate that combining epithelial thickness profiles with posterior elevation data can identify early keratoconus masked by epithelial compensation, preventing potential postoperative ectasia.11

Furthermore, the detection of early keratoconus can facilitate the start of corneal cross-linking (CXL) to prevent further progression of the condition.

Moreover, clinical outcomes support its efficacy: in cases with suspicious topography but normal epithelial profiles, Lasik stability and safety were comparable to those in eyes without keratoconus suspicion, with no reported cases of ectasia during follow-up.10

These findings validate epithelial mapping as a transformative adjunct, ensuring better patient selection and surgical outcomes in refractive surgery and avoiding potential complications, thus setting a gold standard for screening for keratoconus.



2 Use of Laser Eye Surgery for Correcting Presbyopia in the Absence of Cataracts

Presbyopia affects nearly everyone by middle age, manifesting as a decline in near vision due to the loss of lens flexibility. While glasses and contact lenses remain popular corrective options, surgical alternatives like Presbyond Laser Blended Vision and clear lens exchange (CLE) are gaining traction as permanent solutions for presbyopia.



Presbyond: A non-invasive corneal approach

Presbyond is a Lasik-based procedure for the correction of presbyopia. The method can correct myopia and hyperopia in presbyopic patients and employs a customised wavefront profile to extend depth of field by modulating spherical aberration while preserving binocular visual function and stereoacuity.

Unlike traditional monovision, which compromises binocular vision by assigning one eye for near tasks and the other for distance, Presbyond can help maintain seamless vision across all focal points ensuring clear and continuous vision at distance, intermediate and near.12-15

Due to the spherical aberration induction and the low level of anisometropia induced (1.50 D), Presbyond Laser Blended Vision Lasik is well tolerated by 95% of patients,12-15 whereas the reported tolerance for traditional contact lens monovision corrections is between 59% and 67% of patients.16 The other main aim of Presbyond Laser Blended Vision Lasik is to maintain safety and quality of vision.

Therefore, the Presbyond ablation profiles were designed to control the induction of spherical aberration using a continuous aspheric profile, as opposed to intending to create corneal multifocality as in multifocal PresbyLasik.

There are now 18 peer-reviewed publications worldwide on Presbyond consistently demonstrating the efficacy of Presbyond in myopic, hyperopic and emmetropic presbyopes.12-15, 17-25

In a cohort study of over 500 patients, 95% achieved an uncorrected distance visual acuity (UDVA) of 20/20 or better and a near visual acuity of J2 (N5). Satisfaction rates exceed 98%, with minimal reports of glare, halos or contrast sensitivity loss.12-14

In a study of commercial presbyopic pilots, for whom visual precision and quality at all distances is paramount, have successfully undergone Presbyond Lasik, with 100% meeting stringent aeromedical certification requirements.21



CLE and multifocal IOLs

CLE for presbyopia is a surgical procedure that involves replacing the eye’s natural crystalline lens with an artificial multifocal intraocular lens (IOL), such as the Zeiss at Lisa trifocal, BVI FineVision, J&J Eyhance or Alcon Vivity.

While these lenses offer spectacle independence, with studies reporting satisfaction rates between 87% to 100%. It is interesting to note that despite this level of satisfaction, only 54% to 72% of patients in these same studies achieved UDVA of 20/20.26-29

Multifocal IOLs are often associated with side effects, including glare, halos and reduced contrast sensitivity, particularly under dim lighting.32 These side effects, while manageable for many, can pose challenges for patients who are particularly sensitive or who engage in activities that require optimal vision in varying lighting conditions.

While patient satisfaction remains high with multifocal IOLs due to careful preoperative counselling, fewer visual disturbances are seen with Presbyond make it an attractive alternative for younger presbyopic patients without cataracts.33, 34

In conclusion, while multifocal IOLs serve an important role in presbyopia correction, Presbyond offers a safer and less invasive alternative that preserves natural contrast sensitivity and accommodation.

Furthermore, Presbyond is reversible and does not preclude future interventions, making it particularly suitable for patients whose visual needs may evolve over time.



3 Using VHF Digital Ultrasound to Optimise the Safety of ICL Surgery

During implantable collamer lens (ICL) surgery a lens is placed in the anterior chamber in front of the crystalline lens. ICL surgery is often the preferred solution for patients with high refractive errors or thin corneas that may be unsuitable for laser procedures.

In the UK, the ICL is available to treat myopia up to -20.00 D, hyperopia up to +10.00 D and astigmatism up to 6.00 D. Several studies have demonstrated high predictability and favourable visual outcomes especially in the correction of high refractive errors.35 ICLs are available in the following sizes 12.1, 12.6, 13.2 and 13.7mm.

Selecting the correct lens size is crucial to achieving an optimal postoperative vault – the space between the ICL and crystalline lens – is critical for long-term safety. Vaults that are too low and close the crystalline lens increase the risk of cataracts, while excessively high vaults may lead to angle-closure glaucoma or endothelial cell loss.36



Limitations of traditional sizing methods

Many formulas are available to calculate the correct ICL size for implantation to achieve an optimal vault. Traditional ICL sizing formula relies on white-to-white (WTW) and anterior chamber depth (ACD) measurements.

However, these methods rely on external measurements of the eye which lack precision, achieving vaults within ±100 microns in only 32% and 40% of cases, respectively. Calculations involving sulcus-to-sulcus (STS) measurements improve accuracy, with 50-55% of cases falling within this range.37



VHF digital ultrasound ciliary body inner diameter based sizing

VHF digital ultrasound measurement provide unparalleled precision by imaging the posterior chamber and measuring critical parameters like the ciliary body inner diameter (CBID), and STS lens-rise to calculate the optimal ICL size.

A recent publication based on these measurements, demonstrate achieved vaults within ±100 microns in 62% of cases and within ±300 microns in 94%, vastly outperforming traditional methods.38

This improvement not only reduces the need to perform a second procedure to exchange the ICL for a more appropriate size, but also enhances patient safety and satisfaction.

By adopting VHF ultrasound to measure the eye and select an optimal lens size, refractive surgeons can ensure precise sizing, minimising the risk of complications and optimising long-term outcomes.



4 Advanced Techniques for Correcting Surgical Complications

Despite the remarkable advancements in modern refractive surgery, complications can occasionally arise, presenting challenges for both patients and surgeons. Irregular astigmatism, corneal haze and higher-order aberrations (HOAs) may occur due to factors like healing variability, surgical decentration or pre-existing ocular irregularities.

 These complications, while uncommon, can significantly impact visual quality and patient satisfaction if not addressed effectively. Advanced therapeutic techniques have been developed, using precise technology and personalised approaches, to improve visual clarity and restore optimal vision.



Trans-epithelial PTK

Trans-epithelial phototherapeutic keratectomy (PTK) targets irregular astigmatism by selectively removing epithelial tissue and stromal peaks, smoothing the corneal surface. It is particularly effective for treatment of patients with irregularly irregular astigmatism.39



Topography-guided ablation

Topography-guided ablation reshapes the cornea based on detailed topographical maps, addressing regularly irregular astigmatism caused by decentration or small optical zones arising from refractive surgery.

This technique often results in remarkable visual improvements, with many patients achieving 20/20 vision following the procedure.40



Wavefront-guided treatments

Wavefront-guided ablation corrects HOAs that contribute to glare, halos and loss of contrast sensitivity. By targeting these higher order aberrations, wavefront-guided treatments can enhance overall visual quality.41

By leveraging these cutting-edge techniques, surgeons can effectively address even the most complex cases, ensuring significant improvements in visual clarity and optimising patient outcomes.



5 Contact Lens Safety vs Laser Eye Surgery

While contact lenses remain a popular correction for myopia, hyperopia and presbyopia, their long-term safety pales compared to modern laser eye surgery.1,2,4 Even the safest lenses, such as daily disposables, which minimise the risks associated with handling and maintenance, they do not entirely eliminate the potential for complications.42

Refractive surgery has evolved considerably over the years with advancements to technology and postoperative care improving both efficacy and long-term safety.43



Risks of contact lens wear

Daily wear contact lenses are associated with a spectrum of complications, including microbial keratitis, corneal neovascularisation and giant papillary conjunctivitis.4 Microbial keratitis alone affects one to four per 10,000 wearers annually, with some cases resulting in permanent vision loss.4

A comparison of post- Lasik patients and contact lens wearers found that after five years of daily soft contact lens wear there were significantly more cases of microbial keratitis with contact lenses, or approximately three times as many cases with contact lenses when compared with Lasik.

In comparison, advancements in Lasik technology have led to fewer cases of flap related complications,43 and improved preoperative imaging and nomograms have led to more accurate procedures with a lower risk of ectasia.44

Over a lifetime, the cumulative risk of losing two lines of best-corrected visual acuity (BSCVA) with contact lenses equals or exceeds that of laser surgery.2



Safety of laser eye surgery

In contrast, modern laser eye surgery offers an exceptional safety profile and repeatable outcomes. Small incision lenticule extraction (Smile) is the latest innovation in laser eye surgery and involves a keyhole method of correcting refractive error that is minimally invasive leading to a faster recovery.

 A London Vision Clinic study involving 4,000 myopic Smile cases reported a 0.08% incidence of eyes losing two or more lines of corrected distance visual acuity (CDVA), with all affected patients regaining their vision after treatment.45

A recently published study treating myopia up to -14.00 D with Smile also demonstrated excellent visual outcomes and safety with no eyes losing two or more lines of CDVA.

This level of safety and predictability positions laser eye surgery as a compelling alternative for patients seeking freedom from glasses or contact lenses, particularly those who have struggled with the demands or risks of long-term lens wear.



Conclusion

Modern refractive surgery combines cutting-edge technologies and meticulous surgical planning to deliver safe, effective and long-lasting results. From epithelial mapping to Presbyond, and from VHF ultrasound to advanced therapeutic techniques, the field has set a new standard in patient care.

For optometrists, embracing these advancements is crucial in providing patients with informed guidance, ensuring optimal outcomes, and improving quality of life. Through collaboration, we can help patients navigate the expanding landscape of vision correction with confidence and clarity.

  • Professor Dan Z Reinstein is the founder and medical director of the London Vision Clinic, and holds Professorships at Columbia University Irving Medical Center, New York; Ulster University, UK; and Sorbonne University, France. He has been specialised in refractive surgery for over 30 years, has published over 215 peer-reviewed scientific papers and is the editor for the textbook The Surgeon’s Guide to Smile.
  • Financial disclosure: Consultant for Carl Zeiss Meditec (Jena, Germany), CSO Italia (Florence, Italy), and BVI Medical (Waltham, USA). Financial interest in ArcScan Inc (Morrison, USA) and holds patents in VHF digital ultrasound, Smile and Presbyond.



References

  1. 1 McGee HT, Mathers WD. Laser in situ keratomileusis versus long-term contact lens wear: decision analysis. J Cataract Refract Surg. 2009;35:1860-1867.
  2. Masters J, Kocak M, Waite A. Risk for microbial keratitis: Comparative metaanalysis of contact lens wearers and post-laser in situ keratomileusis patients. J Cataract Refract Surg. 2017;43:67-73.
  3. Price MO, Price DA, Bucci FA, Jr., Durrie DS, Bond WI, Price FW, Jr. Three-Year Longitudinal Survey Comparing Visual Satisfaction with Lasik and Contact Lenses. Ophthalmology. 2016;123:1659-1666.
  4. Alipour F, Khaheshi S, Soleimanzadeh M, Heidarzadeh S, Heydarzadeh S. Contact Lens-related Complications: A Review. J Ophthalmic Vis Res. 2017;12:193-204.
  5. Reinstein DZ, Silverman RH, Raevsky T, Simoni GJ, Lloyd HO, Najafi DJ, Rondeau MJ, Coleman DJ. Arc-scanning very high-frequency digital ultrasound for 3D pachymetric mapping of the corneal epithelium and stroma in laser in situ keratomileusis. J Refract Surg. 2000;16:414-430.
  6. Reinstein DZ, Archer TJ, Gobbe M. Change in Epithelial Thickness Profile 24 Hours and Longitudinally for 1 Year After Myopic Lasik: Three-dimensional Display With Artemis Very High-frequency Digital Ultrasound. J Refract Surg. 2012;28:195-201.
  7. Reinstein DZ, Archer TJ, Gobbe M. Corneal Epithelial Thickness Profile in the Diagnosis of Keratoconus. J Refract Surg. 2009;25:604-610.
  8. Silverman RH, Urs R, Roychoudhury A, Archer TJ, Gobbe M, Reinstein DZ. Epithelial remodeling as basis for machine-based identification of keratoconus. Invest Ophthalmol Vis Sci. 2014;55:1580-1587.
  9. Reinstein DZ, Archer TJ, Gobbe M, Silverman RH, Coleman DJ. Epithelial thickness in the normal cornea: three-dimensional display with Artemis very high-frequency digital ultrasound. J Refract Surg. 2008;24:571-581.
  10. Reinstein DZ, Archer TJ, Gobbe M. Stability of Lasik in corneas with topographic suspect keratoconus, with keratoconus excluded by epithelial thickness mapping. J Refract Surg. 2009;25:569-577.
  11. Silverman RH, Urs R, Roychoudhury A, Archer TJ, Gobbe M, Reinstein DZ. Combined tomography and epithelial thickness mapping for diagnosis of keratoconus. Eur J Ophthalmol. 2017;27:129-134.
  12. Reinstein DZ, Carp GI, Archer TJ, Gobbe M. Lasik for the correction of presbyopia in emmetropic patients using aspheric ablation profiles and a micro-monovision protocol with the Carl Zeiss Meditec MEL80 and VisuMax. J Refract Surg. 2012;28:531-541.
  13. Reinstein DZ, Archer TJ, Gobbe M. Lasik for Myopic Astigmatism and Presbyopia Using Non-Linear Aspheric Micro-Monovision with the Carl Zeiss Meditec MEL 80 Platform. J Refract Surg. 2011;27:23-37.
  14. Reinstein DZ, Couch DG, Archer TJ. Lasik for Hyperopic Astigmatism and Presbyopia Using Micro-monovision With the Carl Zeiss Meditec MEL80. J Refract Surg. 2009;25:37-58.
  15. Reinstein DZ, Archer TJ, Gobbe M. Outcomes of Presbyopic Micro-Monovision Lasik for Myopia, Hyperopia and Emmetropia. ESCRS. Berlin, 2008.
  16. Evans BJ. Monovision: a review. Ophthalmic Physiol Opt. 2007;27:417-439.
  17. Althomali TA, Aloufi AN, Alharbi AA, Hafiz AH, Altowairqi AH, Fattah MH, Alzahrani AK, Althomali RK, Althomali WK. Satisfaction Rate After Laser Correction of Presbyopia (Presbyond) Among Patients Aged 40 Years and Older in Taif, Saudi Arabia. Cureus. 2024;16:e52776.
  18. Hernández-Lucena J, Alonso-Aliste F, Amián-Cordero J, Sánchez-González JM. Outcomes of Corneal Compound Hyperopic Astigmatism With Presbyopia by Zeiss Presbyond Laser Blended Vision Lasik Using Default Custom Refractive Software Master Target Refractions for Reduced Anisometropia.J Refract Surg. 2024;40:e480-e489.
  19. Ganesh S, Sriganesh SS. Laser refractive correction of presbyopia. Indian J Ophthalmol. 2024;72:1236-1243.
  20. Hernández-Lucena J, Alonso-Aliste F, Amián-Cordero J, Sánchez-González JM. Outcomes of Corneal Compound Myopic Astigmatism with Presbyopia by Zeiss Presbyond Laser Blended Vision Lasik Using Default CRS-Master Target Refractions for Reduced Anisometropia. J Clin Med. 2024;13.
  21. Reinstein DZ, Ivory E, Chorley A, Archer TJ, Vida RS, Gupta R, Lewis T, Carp GI, Fonseca A, Parbhoo M. Presbyond Laser Blended Vision Lasik in Commercial and Military Pilots Requiring Class 1 Medical Certification. J Refract Surg. 2023;39:6-14.
  22. Russo A, Reinstein DZ, Filini O, Archer TJ, Boldini A, Cardin G, Festa G, Morescalchi F, Salvalai C, Semeraro F. Visual and Refractive Outcomes Following Laser Blended Vision With Non-linear Aspheric Micro-anisometropia ( Presbyond) in Myopic and Hyperopic Patients. J Refract Surg. 2022;38:288-297.
  23. Fu D, Aruma A, Xu Y, Han T, Xia F, Zhou XT. Refractive outcomes and optical quality of Presbyond laser-blended vision for presbyopia correction. Int J Ophthalmol. 2022;15:1671-1675.
  24. Brar S, Sute SS, Bagare SN, Ganesh S. Functional Outcomes and Reading Speeds following Presbyond LBV Using Nonlinear Aspheric Ablation Profiles Combined with Micro-Monovision. J Ophthalmol. 2021;2021:2957443.
  25. Ganesh S, Brar S, Gautam M, Sriprakash K. Visual and Refractive Outcomes Following Laser Blended Vision Using Non-linear Aspheric Micro-monovision. J Refract Surg. 2020;36:300-307.
  26. Shafer BM, McCabe C, Reiser H, Newsom TH, Berdahl J. The REVIVE Study: Long Term Outcomes of a Novel Non-Diffractive Extended Vision IOL versus Monofocal Control IOL. Clin Ophthalmol. 2022;16:3945-3950.
  27. Park ES, Ahn H, Han SU, Jun I, Seo KY, Kim EK, Kim TI. Visual outcomes, spectacle independence, and patient satisfaction of pseudophakic mini-monovision using a new monofocal intraocular lens. Sci Rep. 2022;12:21716.
  28. Ang RET. Long Term Clinical Outcomes of Hydrophilic and Hydrophobic Versions of a Trifocal IOL with the Same Optical Design. Clin Ophthalmol. 2023;17:623-632.
  29. Mendicute J, Kapp A, Lévy P, Krommes G, Arias-Puente A, Tomalla M, Barraquer E, Rozot P, Bouchut P. Evaluation of visual outcomes and patient satisfaction after implantation of a diffractive trifocal intraocular lens. J Cataract Refract Surg. 2016;42:203-210.
  30. Ganesh S, Brar S, Pawar A. Long-term visual outcomes and patient satisfaction following bilateral implantation of trifocal intraocular lenses. Clin Ophthalmol. 2017;11:1453-1459.
  31. Galvis V, Escaf LC, Escaf LJ, Tello A, Rodríguez LD, Lapid-Gortzak R, Carreño NI, Berrospi RD, Niño CA, Viberg A, Camacho PA. Visual and satisfaction results with implantation of the trifocal Panoptix intraocular lens in cataract surgery. J Optom. 2022;15:219-227.
  32. Greenstein S, Pineda R, 2nd. The Quest for Spectacle Independence: A Comparison of Multifocal Intraocular Lens Implants and Pseudophakic Monovision for Patients with Presbyopia. Semin Ophthalmol. 2017;32:111-115.
  33. Woodward MA, Randleman JB, Stulting RD. Dissatisfaction after multifocal intraocular lens implantation. J Cataract Refract Surg. 2009;35:992-997.
  34. Lim DH, Chung ES, Kim MJ, Chung TY. Visual quality assessment after presbyopic laser in-situ keratomileusis. Int J Ophthalmol. 2018;11:462-469.
  35. Albo C, Nasser T, Szynkarski DT, Nguyen N, Mueller B, Libfraind L, Parkhurst G. A Comprehensive Retrospective Analysis of EVO/EVO+ Implantable Collamer Lens: Evaluating Refractive Outcomes in the Largest Single Center Study of ICL Patients in the United States. Clin Ophthalmol. 2024;18:69-78.
  36. Reinstein DZ, MacGregor C, Archer TJ, Gupta R, Potter JG. A review of posterior chamber phakic intraocular lenses. Curr Opin Ophthalmol. 2024;35:138-146.
  37. Reinstein DZ, Lovisolo CF, Archer TJ, Gobbe M. Comparison of Postoperative Vault Height Predictability Using White-to-White or Sulcus Diameter-based Sizing for the Visian Implantable Collamer Lens. J Refract Surg. 2013;29:30-35.
  38. Reinstein DZ, Archer TJ, Vida RS, Piparia V, Potter J. New Sizing Parameters and Model for Predicting Postoperative Vault for the Implantable Collamer Lens (ICL) Posterior Chamber Phakic Intraocular Lens. J Refract Surg. 2022;38:272-279.
  39. Reinstein DZ, Archer TJ, Dickeson ZI, Gobbe M. Trans-epithelial phototherapeutic keratectomy protocol for treating irregular astigmatism based on population epithelial thickness measurements by Artemis very high-frequency digital ultrasound. J Refract Surg. 2014;30:380-387.
  40. Reinstein DZ, Archer TJ, Carp GI, Stuart AJ, Rowe EL, Nesbit A, Moore T. Incidence and Outcomes of Optical Zone Enlargement and Recentration After Previous Myopic Lasik by Topography-Guided Custom Ablation. J Refract Surg. 2018;34:121-130.
  41. Reinstein DZ, Archer TJ, Couch D, Schroeder E, Wottke M. A new night vision disturbances parameter and contrast sensitivity as indicators of success in wavefront-guided enhancement. J Refract Surg. 2005;21:S535-540.
  42. Sund MH, Slettedal JK, Sæthre M, Haslev HP, Kristianslund wO, Østern AE, Drolsum L. Incidence, risk factors, and patient characteristics in severe contact lens-related microbial keratitis. Acta Ophthalmol. 2024.
  43. Ang M, Gatinel D, Reinstein DZ, Mertens E, Alió Del Barrio JL, Alió JL. Refractive surgery beyond 2020. Eye (Lond). 2021;35:362-382.
  44. Ambrósio R, Jr. Post- Lasik Ectasia: Twenty Years of a Conundrum. Semin Ophthalmol. 2019;34:66-68.
  45. Reinstein DZ, Carp GI, Archer TJ, Vida RS, Yammouni R. Large Population Outcomes of Small Incision Lenticule Extraction in Young Myopic Patients. J Refract Surg. 2022;38:488-496.
