Sharper, better, faster, smarter

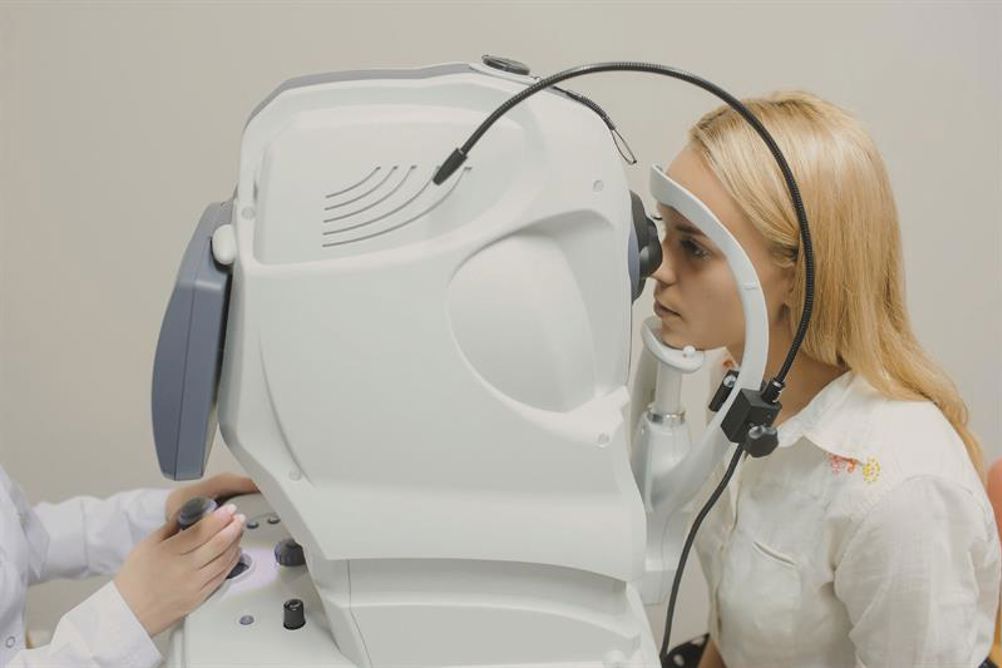

The Canon Xephilio OCT-A1 System, comprising OCT, RX Capture software, computer and LCD monitor, has a scanning speed of 70,000 scans per second with an optical depth resolution of three microns. The OCT averages up to 200 scans and offers specific scan modes for vitreous and choroid imaging with a scan width of 13mm. It can automatically detect and distinguish 10 layers of the retina and features 10 fixed, programmable exam pre-sets, comparing the results of five examinations in a time sequence. Fundus images taken on an optional retinal camera can be integrated into the OCT examination. Integrated scanning laser ophthalmic real-time retinal tracking technology automatically retains the scan position and protocol for each patient, eliminating the need for manual adjustment.
